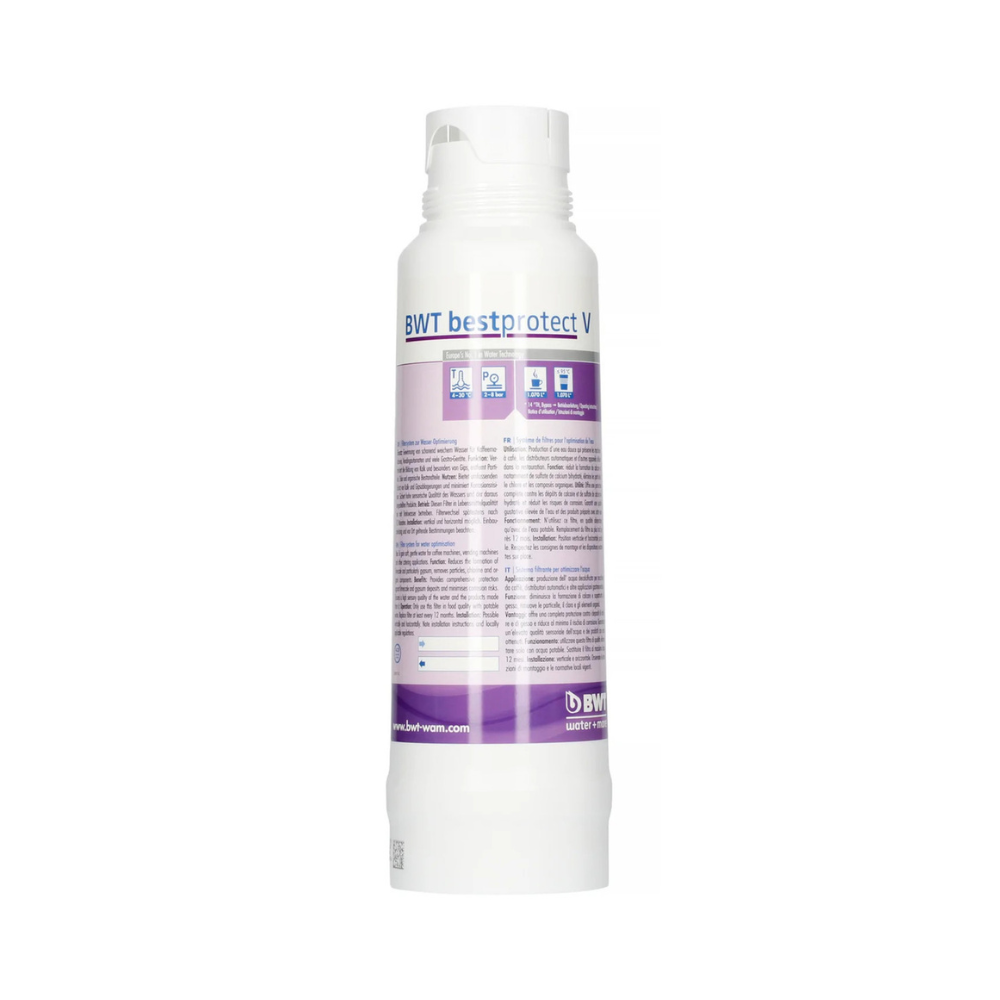

BWT Bestprotect V, XL, 2XL



BWT bestmax is a simple, practical, all-round filtration solution developed for the diverse requirements of the food service sector. It provides superb quality water for a full coffee taste, is also ideally suited for use in vending equipment and produces perfect, pure steam for ovens and combi steamers. The new High Efficiency Technology (HET) provides even more effective water optimisation, resulting in a consistently high water quality for hot and cold drinks, kitchens, bakeries and all food and baked goods.

Benefits of BWT bestmax at a glance:

  • 5-stage filtration
  • Highly efficient limescale protection
  • Additional filtration of bypass water
  • Easy filter replacement process
  • Vertical or horizontal installation

Automatic water stop valve during filter replacement

BWT bestmax type

V

XL

2XL

Connection thread (in/out)

3/8"

3/8"

3/8"

Intake pressure
min –max in bar

2 – 8

2 – 8

2 – 8

Water temperature
min – max in °C

4 – 30

4 – 30

4 – 30

Ambient temperature
min – max in °C

4 – 40

4 – 40

4 – 40

Total height without bracket (A) in mm, approx.

420

500

574

Total height with bracket (B) in mm, approx

445

530

600

Connection height (C) in mm

370

450

520

Distance from floor (D) in mm

65

65

65

Installed length (E) in mm

125

125

125

Filter cartridges Ø (F) in mm

115

145

185

Weight in kg, approx. (dry/wet)

2.1/3.2

3.8/6.0

7.5/11.0

Order no. Installation set

FS23I01A00

FS28I01A00

FS30I01A00

Order no. Filter cartridge

FS23I00A00

FS28I00A00

FS30I00A00



Click here for PDF
